Next-generation JBL driver technology

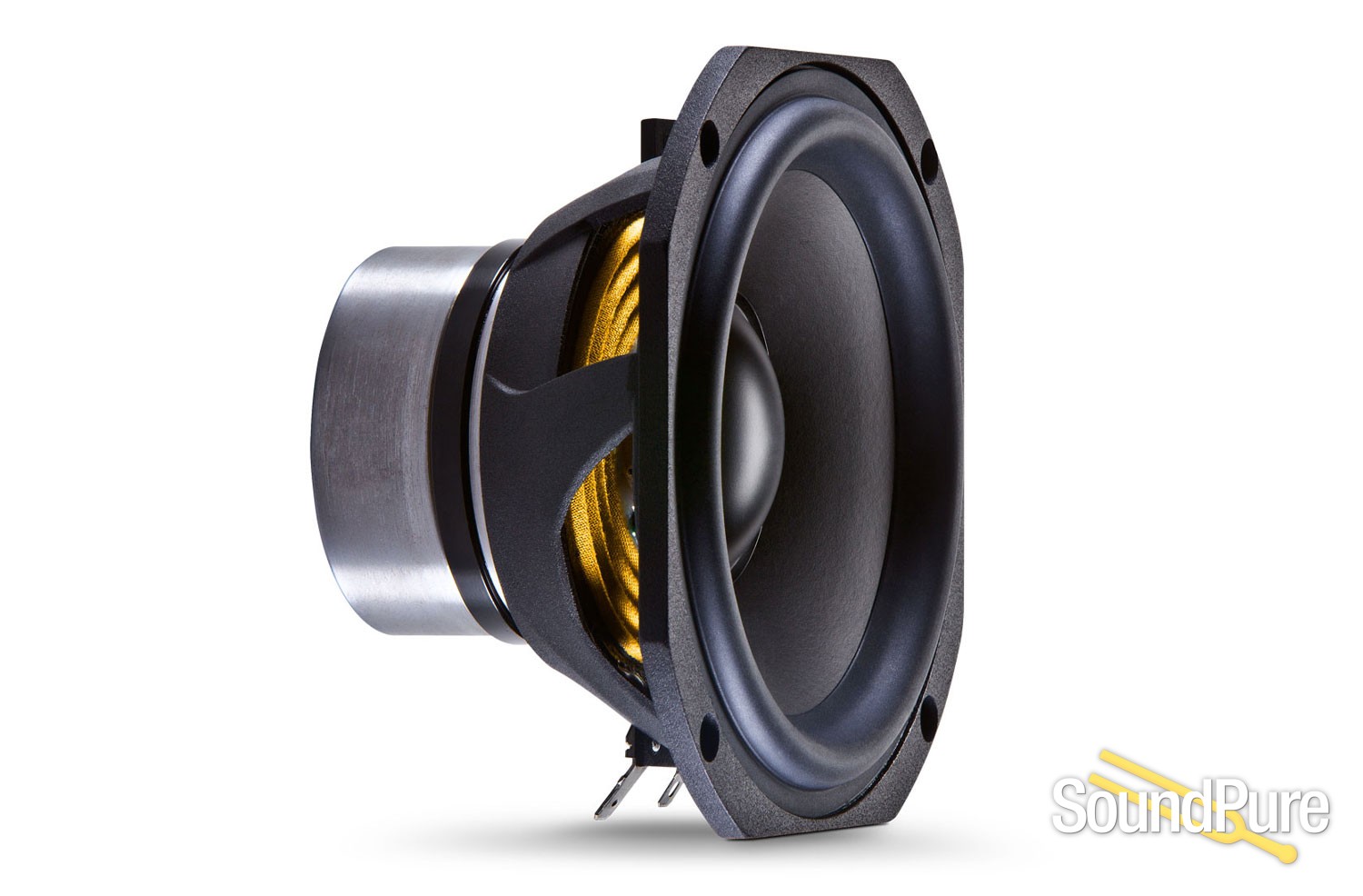

JBL 705P leverages next-generation JBL driver technologies to deliver greater dynamic range and superior frequency response. The 2409H high-frequency compression driver incorporates an innovative low-mass annular diaphragm to deliver smooth response beyond 36 kHz, with very low distortion. The 725G low-frequency transducer provides 14mm peak-to-peak excursion with greater linearity, delivering exceptional low-frequency output below 39 Hz. These proprietary drivers allow the 705P to deliver two to three times the output of existing studio monitors.

Patented Image Control Waveguide

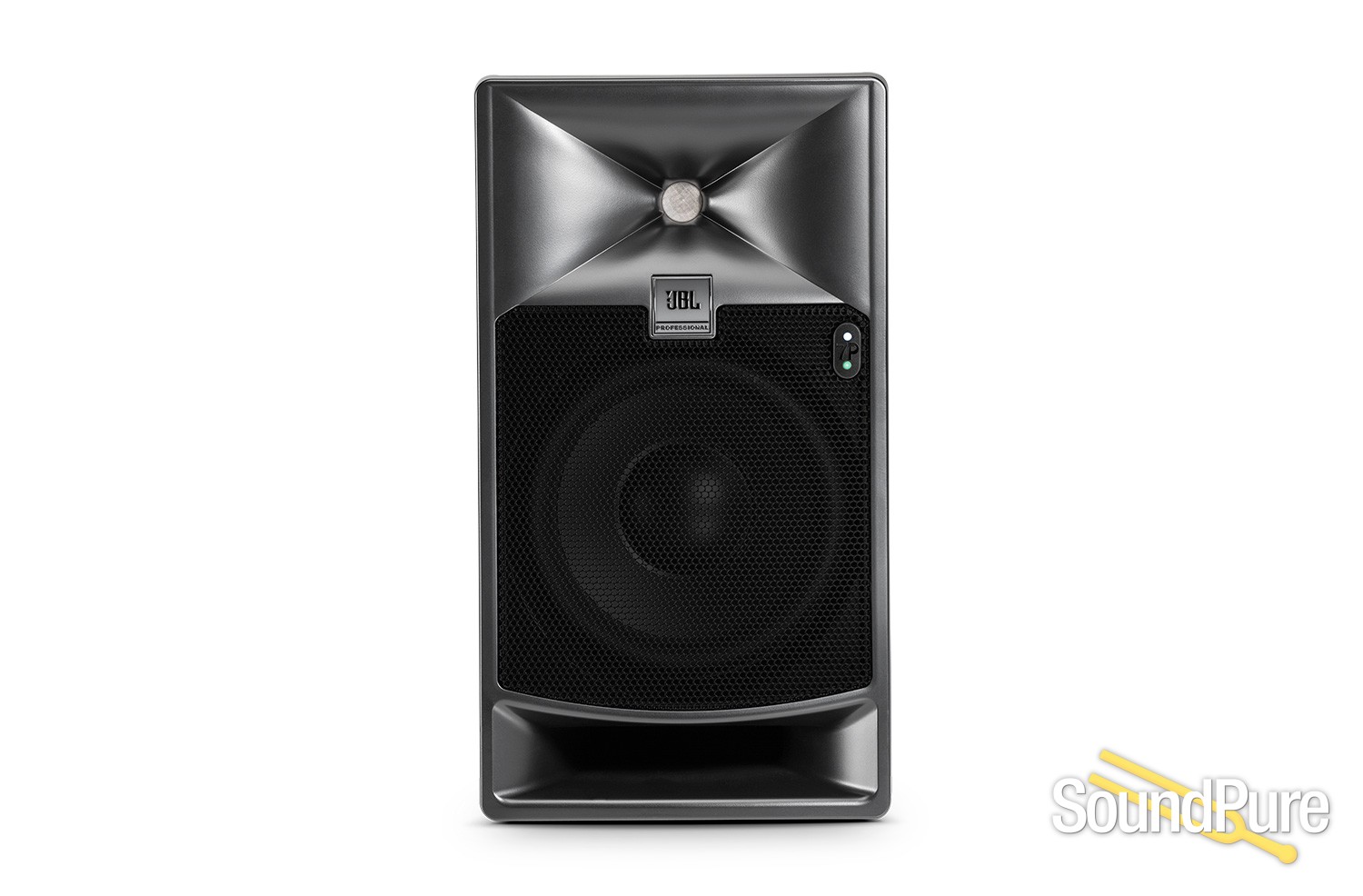

The JBL Image Control Waveguide ensures accuracy and neutrality while providing a wide sweet spot with increased sonic detail. By enabling an acoustically seamless transition between the low- frequency and high-frequency transducers, the waveguide provides a detailed soundstage and accurate imaging across the entire frequency spectrum. The smooth, on- and off-axis frequency response allows the JBL 705P to deliver neutral response across a wide listening area in a broad range of rooms.

Integrated 250W + 250W dual-amplification system

JBL 705P features a built-in dual amplification system that’s optimized for its high-output drivers. A 250W amp powers the 2409H high-frequency transducer and a 250W amp is dedicated to the 725G low-frequency transducer. This combination provides exceptional output and allows for greater listening distances, making them ideal for post production or mastering environments.

Features

-Next-generation JBL driver technology

-Patent-pending JBL Image Control Waveguide

-Integrated dual amplification system with internal floating-point DSP

-Comprehensive room EQ and delay controls

-Compact enclosures for easy placement and installation

-JBL 725G low-frequency transducer delivers low-distortion and high SPL

-JBL 2409H high-frequency transducer with low-mass annular diaphragm

-JBL-designed patent-pending Image Control Waveguide

-2-channel Class-D amplifier HF 250W / LF 250W

-192 kHz, 32-bit floating point processing

-12 bands of Room EQ, 8 bands of User EQ

-6 factory presets, 6 user-defined presets

-18 milliseconds of Room Delay, 150 milliseconds of AV Sync Delay

-1 x XLR-1/4" balanced combination analog audio input

-1 x XLR AES3 format digital input with 1 x XLR pass-through output

-Digital input accepts sample rates of up to 192 kHz

-User-enabled sample rate converters

-RJ-45 network connection for Harman HiQnet connectivity

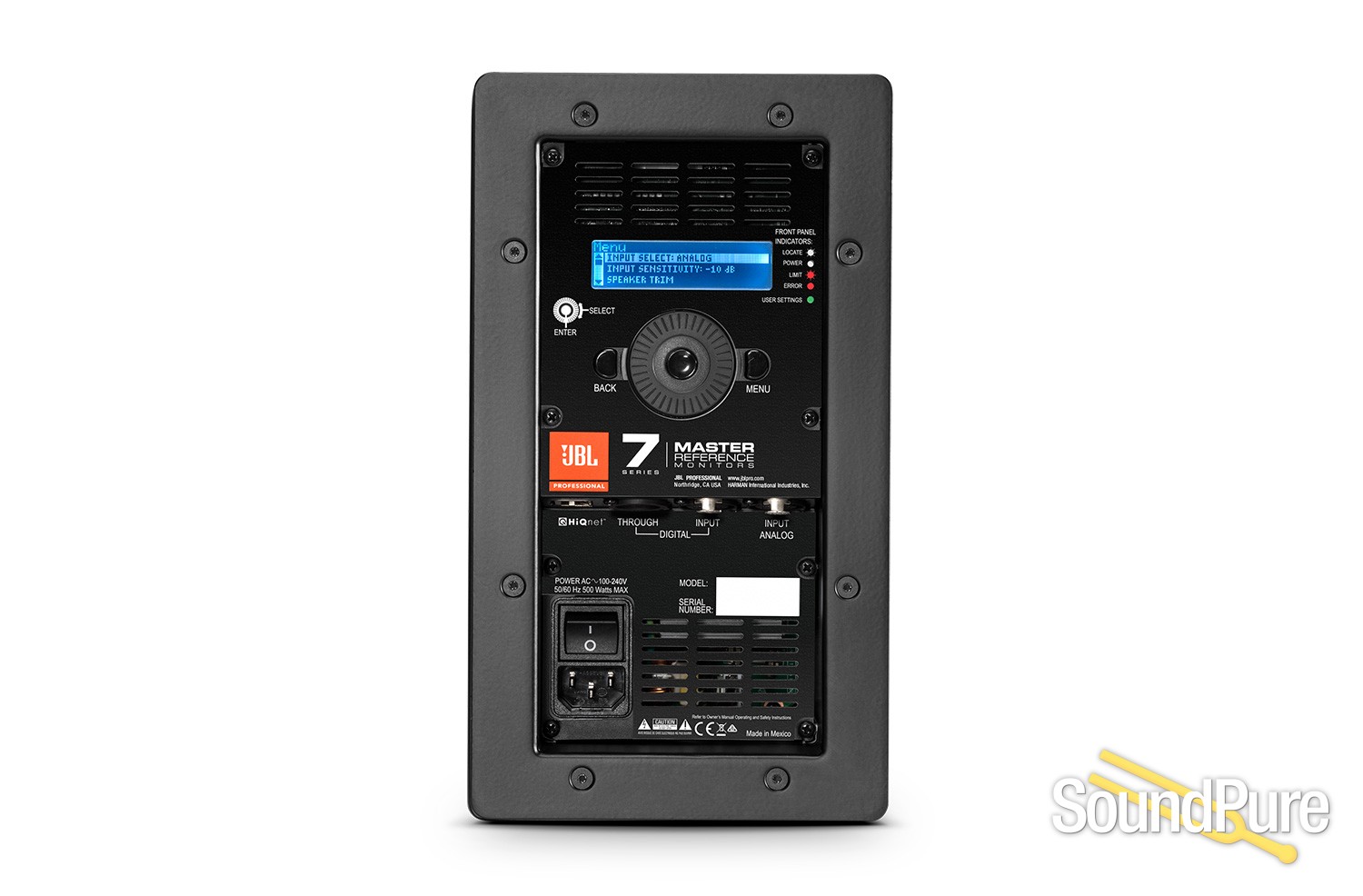

-Rear-panel multi-function controls and LCD display allow selection of input sensitivity, input trim, Room EQ, User EQ, Room Delay, AV Sync Delay

-Top and bottom mounting points; birch plywood cabinets reinforced for safe mounting

-Protective steel grilles
