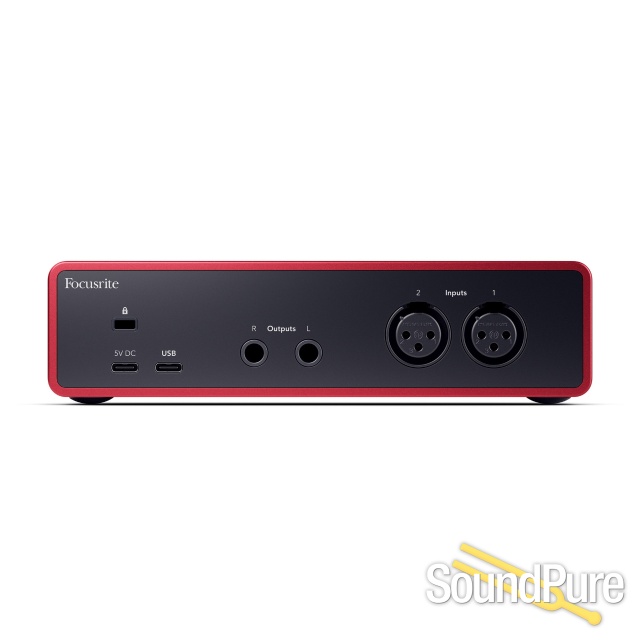

From Focusrite
The original studio-quality 2-in, 2-out interface, has been remastered for the artist. Two of our most detailed ultra-low-noise mic pres. Hi-Z and super-high-quality line inputs for guitars, keys and synths. Studio-grade converters, with a huge 120dB dynamic range that matches what you'd find in a pro studio.
Auto Gain and Clip Safe make sure you'll never need to worry about your levels. Air mode, with Presence and Harmonic Drive, gives you that big console sound wherever you record. And the Hitmaker Expansion software bundle includes all the tools you need to record, produce and release your tracks.
| Overview | |
|---|---|
| Number of Microphone Preamps | 2 |
| Phantom Power | Yes |
| Instrument Inputs | 2 |
| Line Inputs | 2 |
| Air Mode | Yes |
| Auto Gain | Yes |
| Line Outputs | 2 |
| Headphone Outputs | 1 |
| Loopback | Yes |
| Connectivity | USB Type-C |
| Protocol | USB 2.0 |
| Form Factor | Desktop |
| Simultaneous I/O | 4x2 (including loopback inputs) |
| A/D Resolution | 24-bit/192kHz |
| Bus Powered | Yes (900mA) |
| Dimensions | |
| Height | 47.5mm |
| Width | 180mm |
| Depth | 117mm |
| Weight | 0.595kg |
| Supported Sample Rates | |
| 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz | |
| Microphone Inputs | |
| Frequency Response | 20-20kHz ± 0.06dB |
| Dynamic Range | 116dB (A-Weighted) |
| THD+N | -100dB @ 8dB gain |
| Noise EIN | -127dBu (A-Weighted) |
| Maximum Input Level | 16dBu |
| Gain Range | 69dB |
| Impedance | 3kΩ |
| Line Inputs | |
| Frequency Response | 20-20kHz ± 0.05dB |
| Dynamic Range | 115dB (A-Weighted) |
| THD+N | -100dB @ 8dB gain |
| Maximum Input Level | 22dBu |
| Gain Range | 69dB |
| Impedance | 60kΩ |
| Instrument Inputs | |
| Frequency Response | 20-20kHz ± 0.15dB |
| Dynamic Range | 113dB (A-Weighted) |
| THD+N | -80dB @ minimum gain |
| Maximum Input Level | 12dBu |
| Gain Range | 62dB |
| Impedance | 1MΩ |
| Line Outputs (Balanced) | |
| Frequency Response | 20-20kHz ± 0.02dB |
| Dynamic Range | 120dB |
| THD+N | -109dB |
| Maximum Output Level | 16dBu |
| Impedance | 100Ω |
| Headphone Outputs | |
| Frequency Response | 20-20kHz ± 0.1dB @ 33Ω / 300Ω |
| Dynamic Range | 112dB @ 33Ω 115dB @ 300Ω |
| THD+N | -99dB @ 33Ω -108dB @ 300Ω |
| Maximum Output Level | 2.5dBu into 33Ω 10dBu into 300Ω |
| Maximum Output Power | 32mW into 33Ω 22mW into 300Ω |
| Impedance | 50Ω |
| Analogue to Digital Converter | |
| THD+N | -110dB |
| Dynamic Range | 120dB |
| Digital to Analogue Converter | |
| THD+N | -115dB |
| Dynamic Range | 130dB (A-Weighted) |
| Power | |
| USB | 900mA |
| External (Optional) | 4.5W |
